Meyer Sound USW-112P
Robust Bass for Any Space
Model Description
Flexible and Feature-Packed

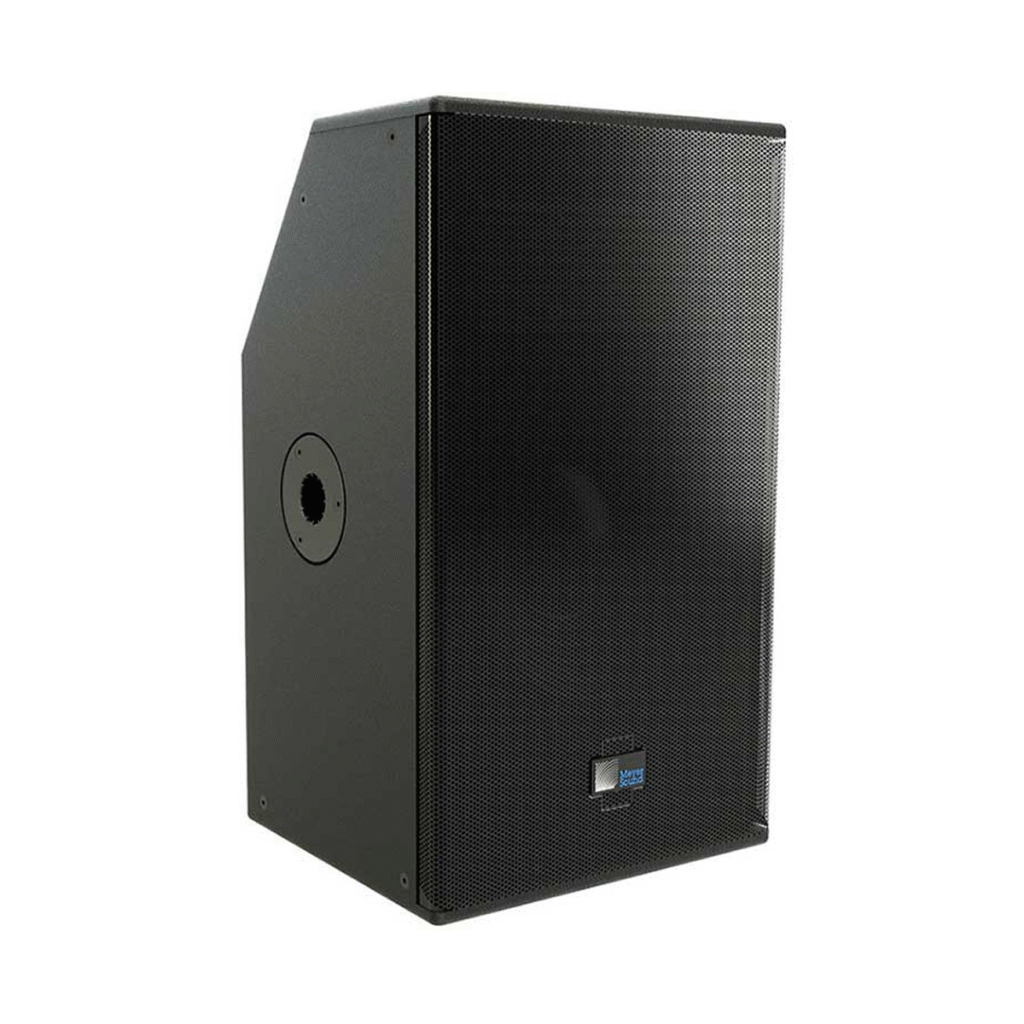

The Meyer Sound USW-112P is a compact powered subwoofer designed primarily as an ideal complement to the ULTRA-X20 series and other Meyer Sound compact systems.
What is it suitable for:
Installations in theaters, cafes, museums, studios, small and medium-sized halls.
Touring solutions where compactness and installation speed are critical.
Excellent sub for front-fill and nearfield zones together with X20/X22/X23
Key Features
- Very compact but powerful – easy to integrate into installations where invisibility is important.
- Front-loaded – provides fast, articulate bass with minimal phase distortion.
- Compatible with ULTRA-X20 in both power and visual design (similar dimensions, color and body shape).
- Passive cooling – silent operation without fans.
- Possibility of installation on a stand (M20 thread) and built-in suspension points.
Discreet System Enhancement
The USW-112P self-powered subwoofer delivers powerful low-frequency performance in a compact, versatile package. It’s designed as an ideal companion for ULTRA‑X20 loudspeaker and complements a range of Meyer Sound loudspeakers including the UPM, UP‑4slim, Ashby‑5C, and Ashby‑8C. Its low-profile cabinet measures just 23.5 inches high by 13.5 inches wide by 12 inches deep, making it an ideal choice when space is limited.
Lean-And-Clean Low End
Count on the USW-112P to deliver clean, low-distortion output at any output level: Its proprietary 12” low-distortion, long-excursion driver enhances low-frequency performance in the 35 to 140Hz range, and its cabinet incorporates a low-air-velocity port tuned for high efficiency, linear response, and low distortion.
Potent Processing
The USW-112P’s built-in Class D amplifier delivers a linear peak SPL of 123 dB, measured using M‑Noise. Sophisticated signal processing includes electronic crossover, correction filters for phase and frequency response, and driver-protection circuitry. The crossover accepts full-range signals, enabling daisy-chain signal distribution and eliminating the need for external crossovers in smaller systems.
Agility Plus Stability
The 45-pound USW-112P fits anywhere, from churches and clubs to restaurants and small theatres. Orient it in horizontal or vertical position; its two integrated M8 mounting points can be used with an optional U-bracket to enable wall, ceiling, or truss mounting. Other options include a 35mm stand-mount receptacle with M20 threads for added stability.
